BYPASS LEVEL TRANSMITTER & SWITCH

PRODUCT FEATURE:

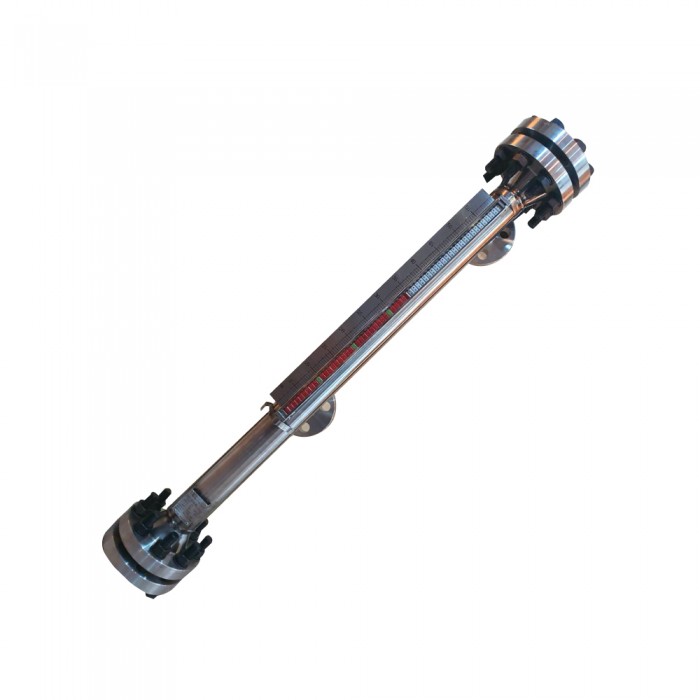

MAGNETIC FLOAT BY PASS LIQUID LEVEL TRANSMITTER
Mounting type       : Side to Side , Top-mounting

Share Our Software With Your Network

Description

MAGNETIC FLOAT BY PASS LIQUID LEVEL TRANSMITTER

Mounting type       : Side to Side , Top-mounting

Measuring range    : 0 ∼ 6000mm(Side to Side mounting) , 0 ∼ 4000mm(Top-mounting)

Operation Temp.    : -40 ∼ 450°C

Chamber material   : SUS304, SUS316, PTFE Others

Float Material          : SUS304, SUS316, Titanium, Others

Connection             : Thread, Flange ANSI, JIS, DIN

Indicator                 : Flaper, Flaper + Ruler

Output Signal         : Alarm limit switch Dry Contact, SPDT Switch, 4-20mA(Option)

Explosion proof      : Non explosion proof, Intrinsically safe explosion-proof, Explosion isolation
