RADAR

PRODUCT FEATURE:

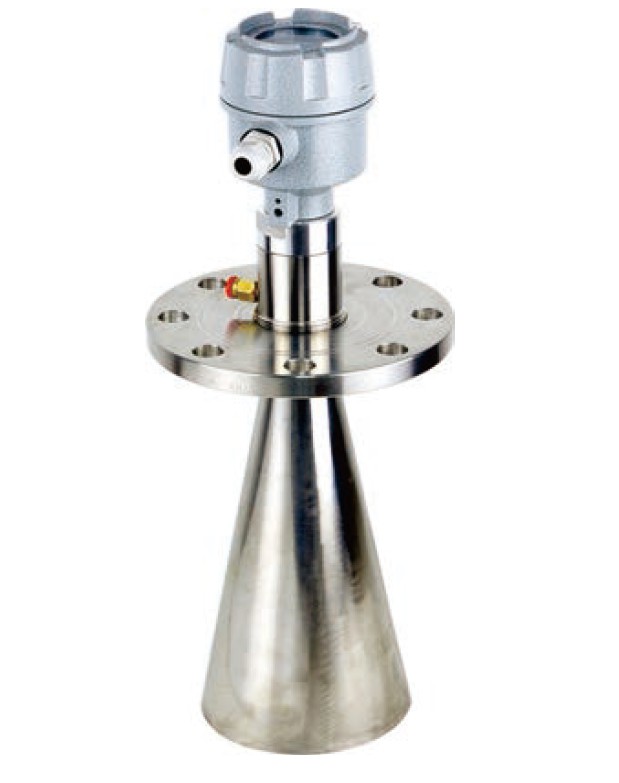

MODEL : RD2693
RADAR LEVEL

Share Our Software With Your Network

Description

MODEL : RD2693

RADAR LEVEL

♦ Application                              : Solid material, process tank or heavy dust or ash, or easy crystallization and condensation place.

♦ Measuring range (Maximum)   : 70m (Depends on dielectric constant of different medium and the concrete working conditions)

♦ Process connection                  : Thread, Flange

♦ Process temperature                : -40°C … +250°C

♦ Process pressure                      : -0.1~0.3MPa

♦ Accuracy                                  : ±15mm

♦ Repeatability                           :  ±2mm

♦ Dead band                              : 500~1000mm

♦ Frequency range                     : 26GHz

♦ Explosion proof                      : Ex ia IIC T6. Exd ia IIC T6

♦ Enclosure protection grade     : IP67

♦ Signal output                          :  4-20mA/ HART (2-wire/ 4-wire), RS485/ Modbus
